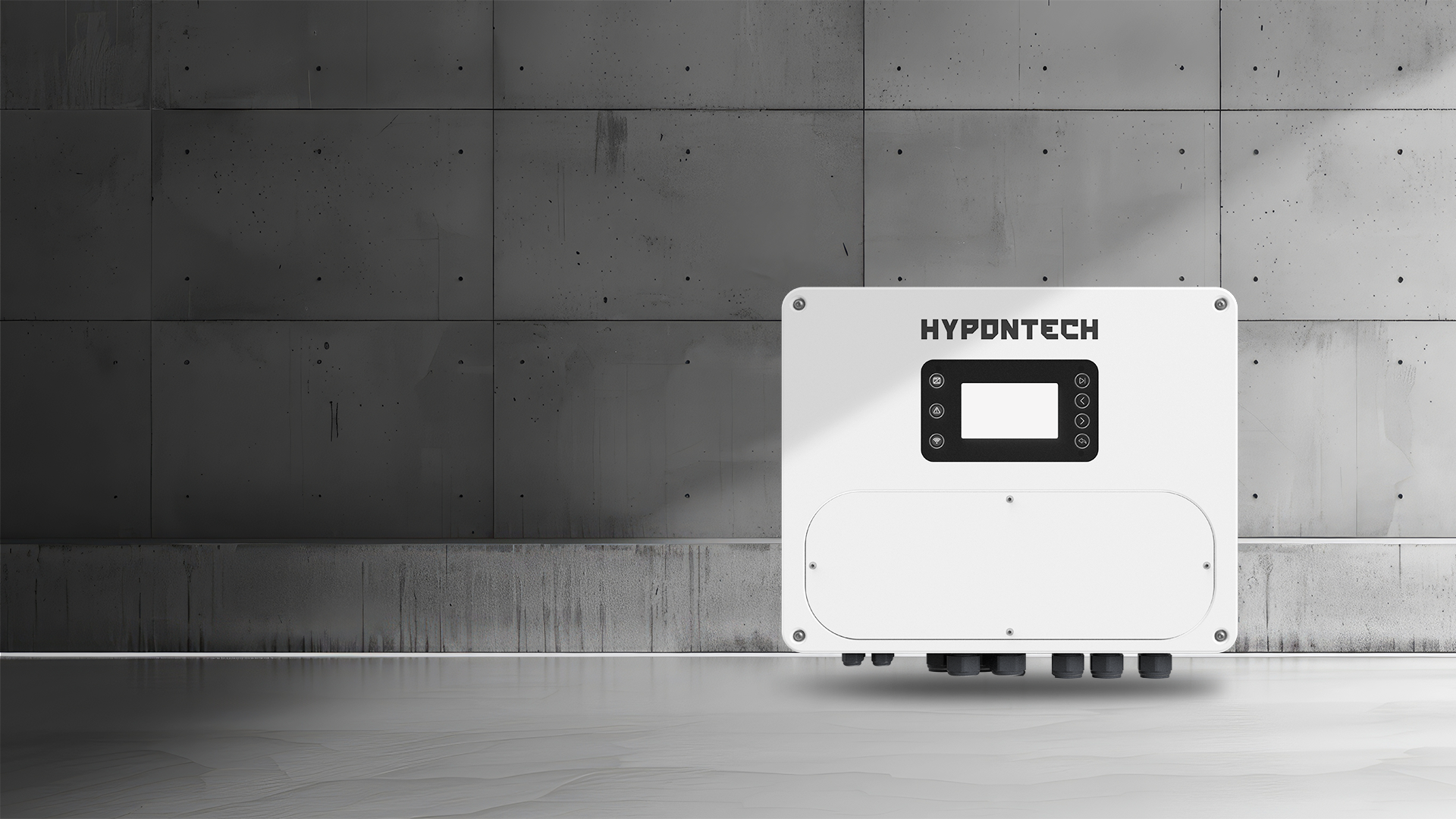

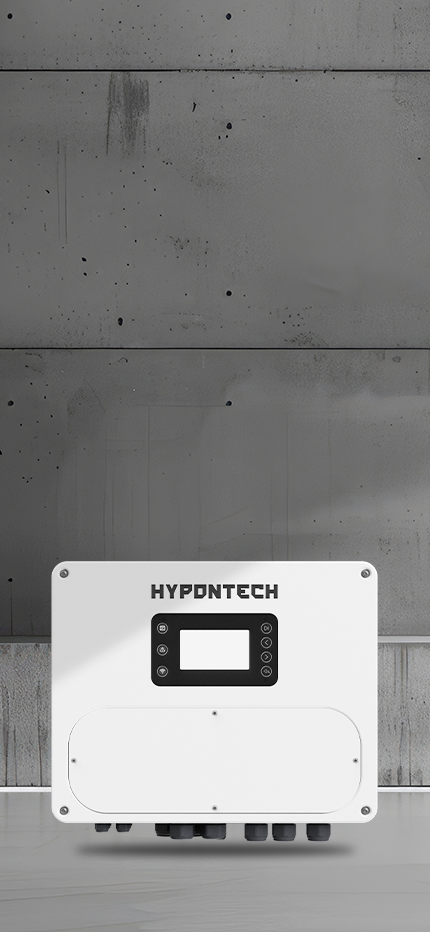

HES 3-6KL
Hybrid | Single Phase | LV
Maximum 18A PV Input Current
DC Ratio up to 2.0
Smart Load Function
<10ms UPS Switch for Power Backup
Shadow Scan Algorithm
Support Both on and off-grid Operation
Support Both Lead-acid and Li-ion Batteries
Multiple Periods for Battery Charging/Discharging
Integrated
Anti-islanding Protection
Integrated
Battery Reverse Protection
Surge Protection
DC Type II, AC Type III
Max. Input Current
18A
Max efficiency
98%
HES 3-6KL-LV
PV INPUT
Max. Input Current / A 18
EFFICIENCY
Max. efficiency 98.0%
BATTERY INPUT
Battery Type Lithum / Lead-Acid
GENERAL DATA
Communication With Cloud WiFi / 4G / LAN (Opt)
