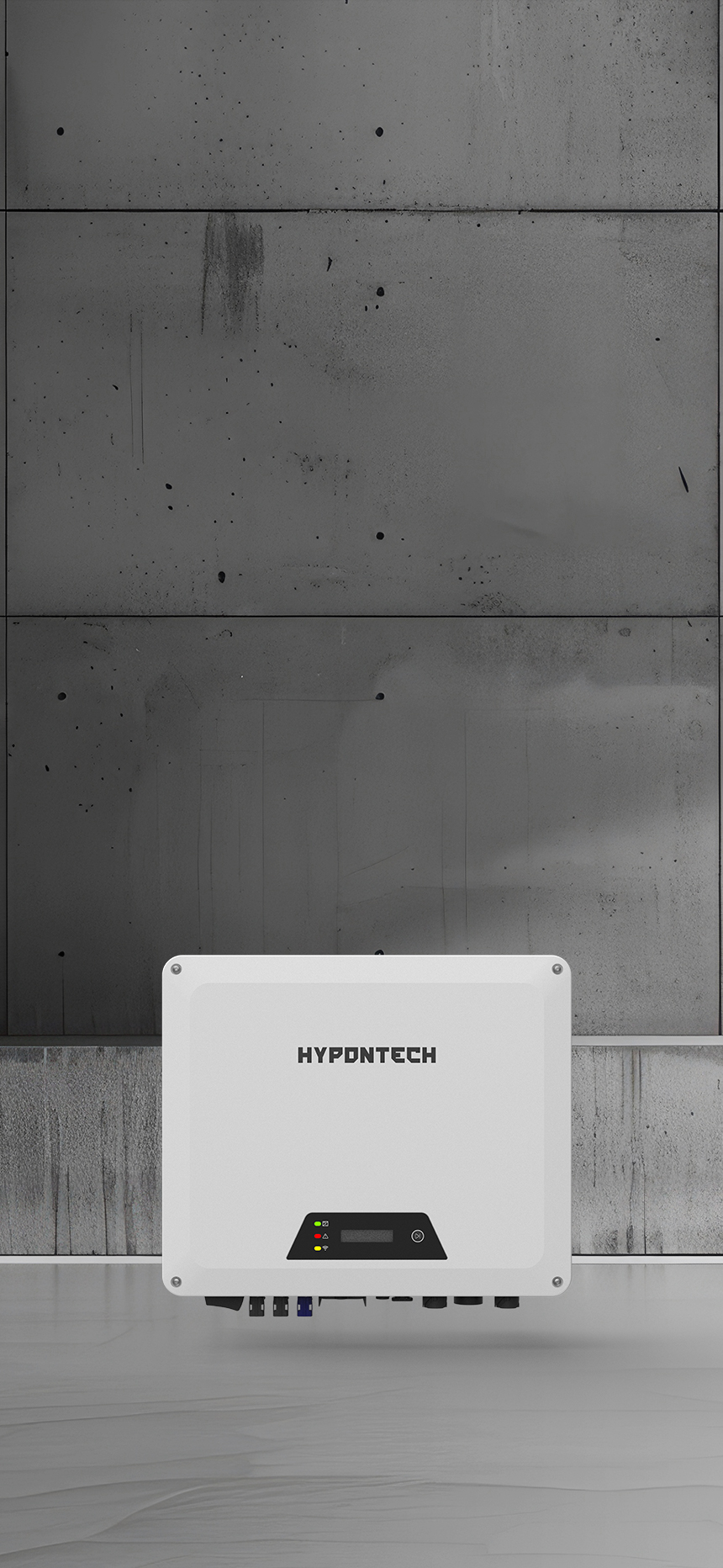

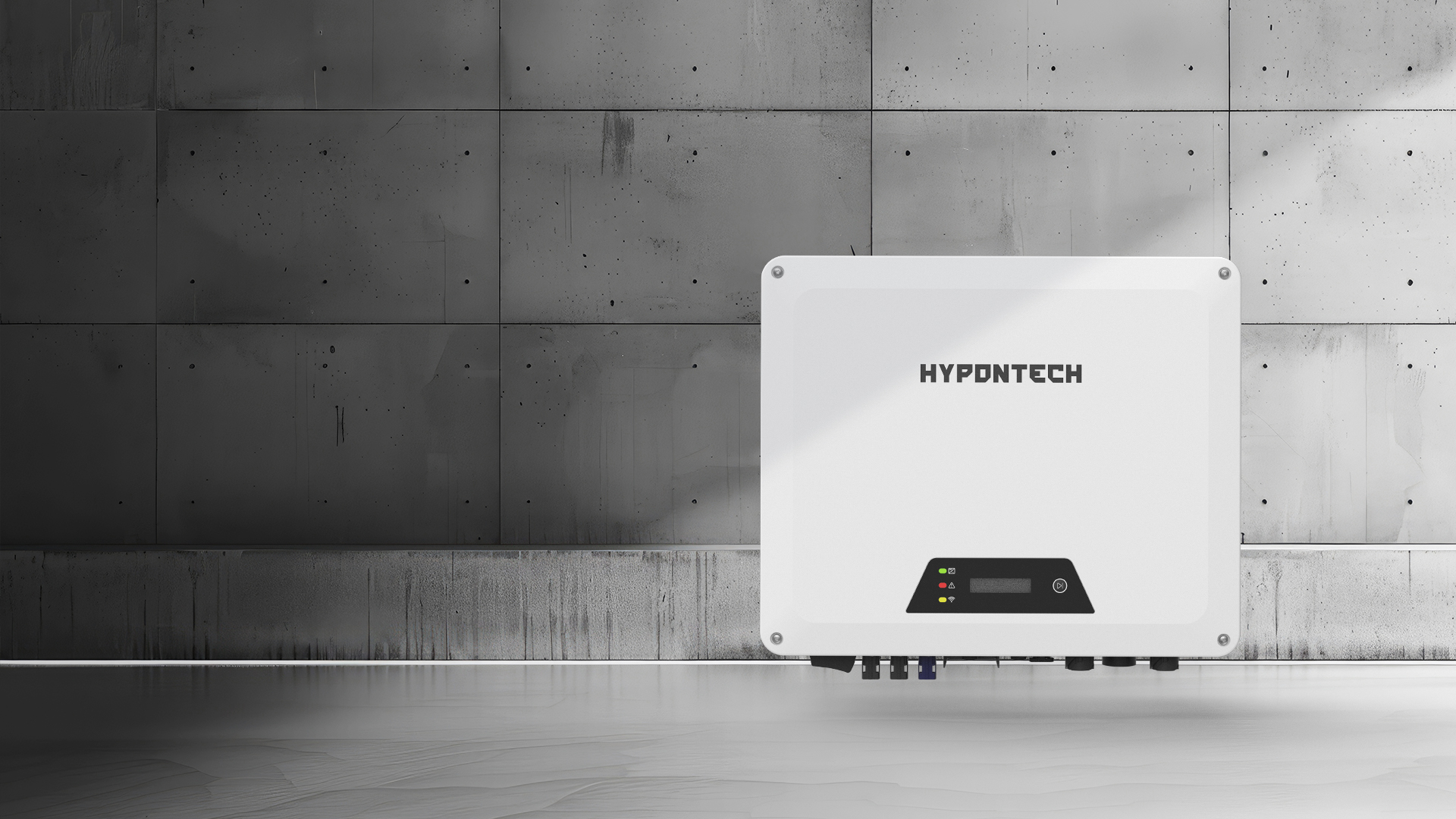

HHT 5-15K PRO
Hybrid | Three Phase | 2 MPPTS | HV
Up to 20A input current per PV string
Maximum configurable PV module input power of 2 times the rated power
Start-up voltage: 145V
Maximum battery charge/discharge current: 40A
Peak charge/discharge current: 50A
AFCI Function
Support Heat pump & Generator
ADVANCED SAFETY REDEFINED
Optional
AFCI
Surge protection
DC Type II, AC Type II
HIGH YIELDS
Max. efficiency
98.2%
Max. Input Current
20A
CONNECT TO YOUR HYPONTECH SYSTEM WITH HYPON. CLOUD
HHT 5-15K PRO-HV
AC INPUT
Max. Input Current / A 20
EFFICIENCY
Max. efficiency 98.2%
BATTERY INPUT
Battery Type Lithium
GENERAL DATA
Communication With Cloud WiFi / 4G / LAN(Opt)
